Raymarine Cyclone 55 Watts 3ft Open Array Radar

* In the event that stock is unavailable, your order will be processed as a backorder with an expected lead time of up to 14 days.
We recommend confirming availability with us before placing an order if urgent delivery is required.

Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables

High-performance, solid-state, open array radar designed for both recreational and commercial use.

Solid State Open Array Marine Radar

The ultimate expression of design, rugged performance, and unmatched situational awareness, Cyclone solid-state open array radars give mariners the confidence to tackle the harshest conditions, gain the upper hand in the hunt for fish, and navigate busy waterways with confidence. Cyclone radars are available with a 3, 4 or 6-foot antenna array and two high-power output options.

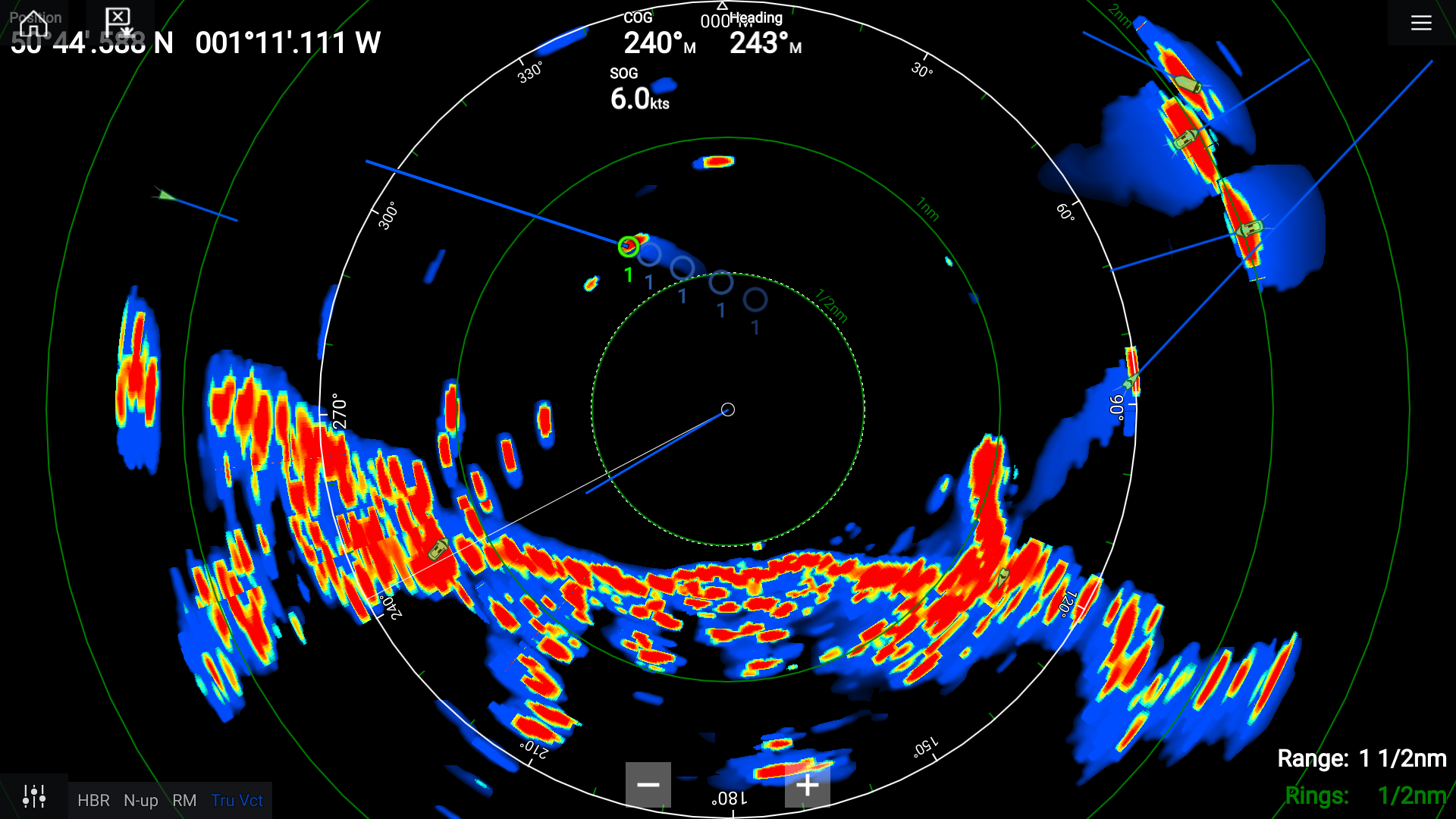

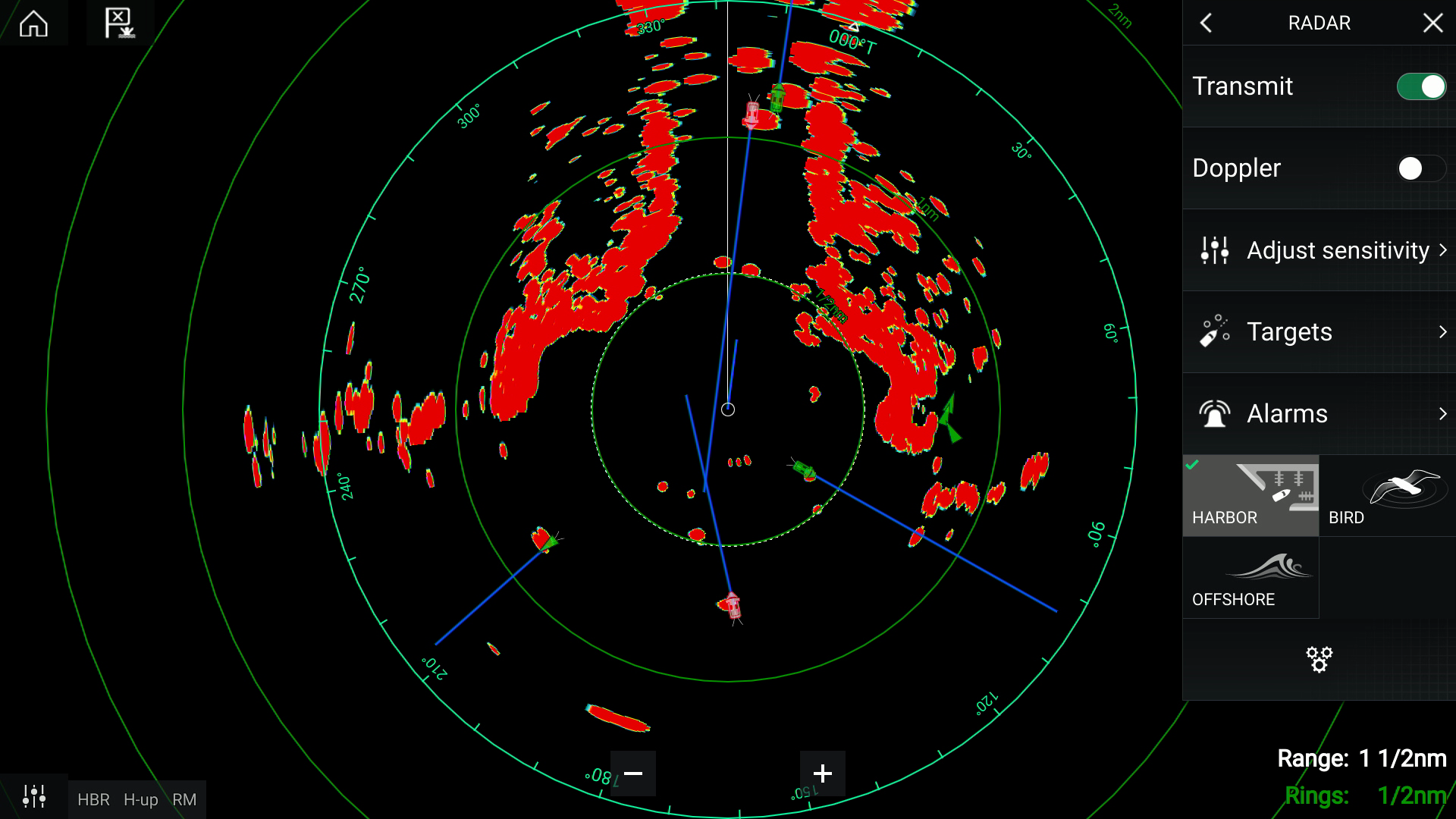

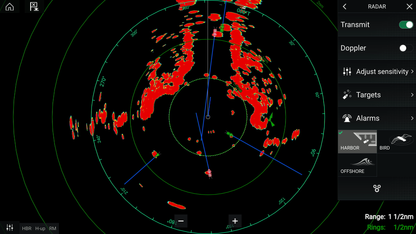

Cyclone radars deliver superior target separation and long-range resolution using CHIRP pulse compression and Raymarine beam sharpening technology. Each model features innovative detection capabilities, including Cyclone Bird Mode, RangeFusion™ technology and a high speed 60 RPM rotational speed that delivers 360 degrees of awareness and accurate target tracks in real-time.

Low-Profile, High-Performance Open Array Radar

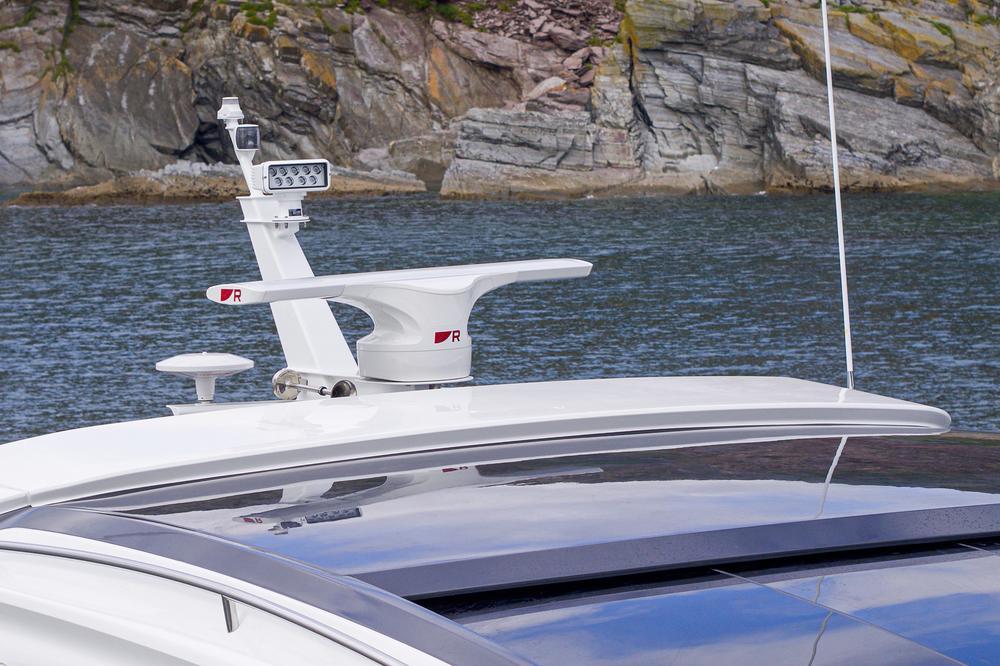

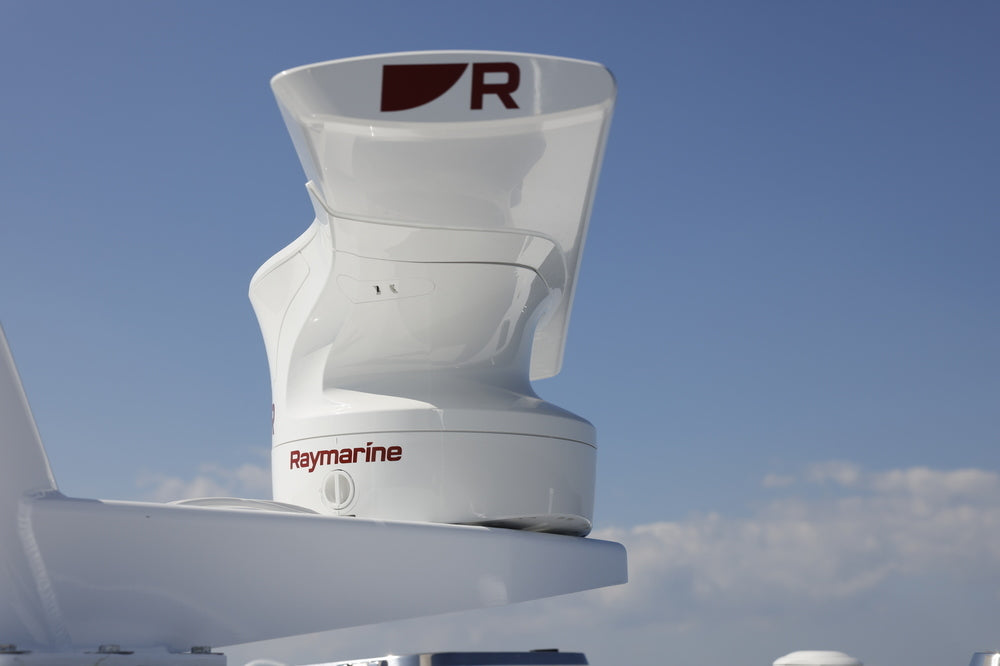

Cyclone is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for marine radar. At 335 mm tall, Cyclone’s lower profile allows for greater flexibility and more adaptable installation options. The innovative pedestal design conceals cable connections for a cleaner installation.
