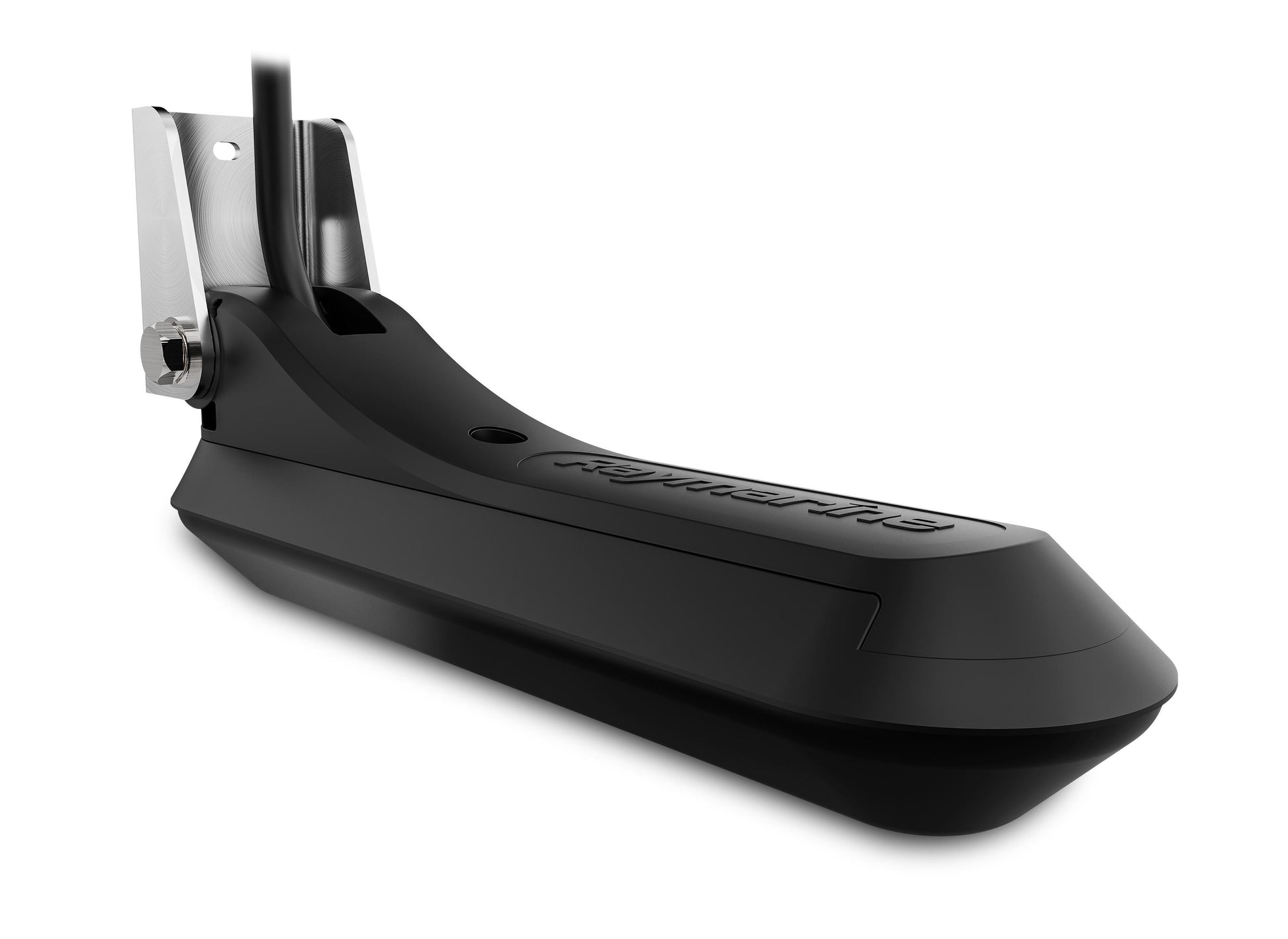

RealVision MAX Transom Mount Transducer for Axiom 2 Pro and RVM-1600 sonar systems.

RVM-100 Overview

Raymarine’s RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters.  The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering.  The RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.

The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.

For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (A80479, sold separately.)
